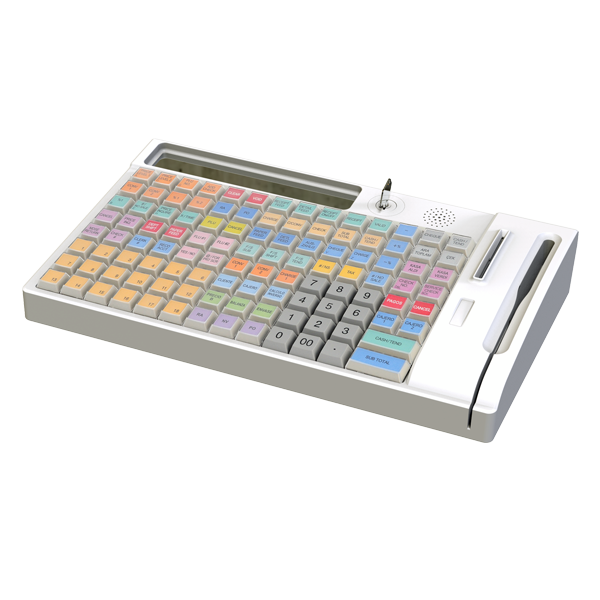

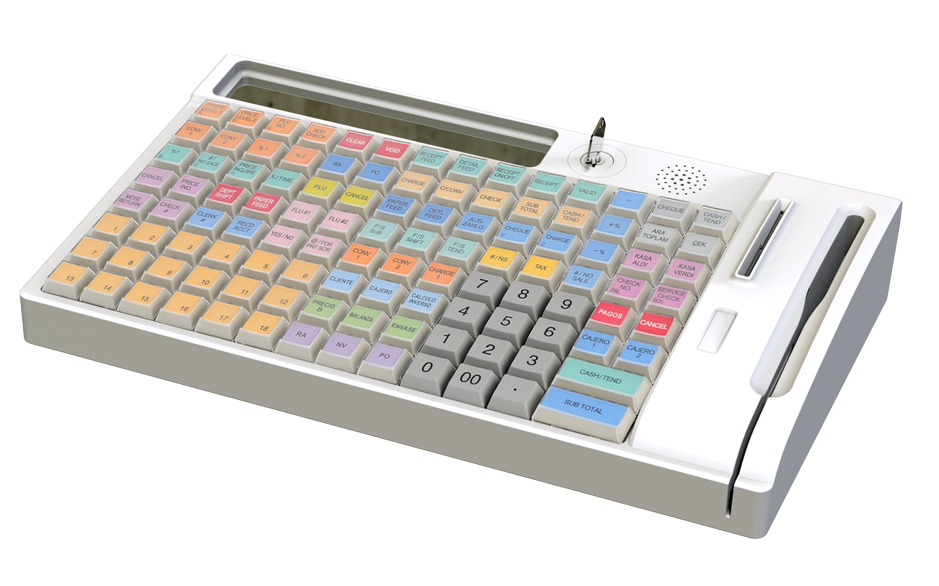

PP309 112KEY

- 112 keys POS keyboard
- SCR & MSR device that reads quickly and accurately
- Provide basic uni-mapper's software
- POS keyboard 112 keys

Inquiry

Product Features

PP309 112KEY

Electronic Payment System
with secure function

  1. 112keys
    POS Keyboard
  2. SCR&MSR Device
    that reads
    quickly and accurately
  3. Provide basic
    Uni-Mapper's software
  4. Manufacture by our own technology,
    "Made in Korea"

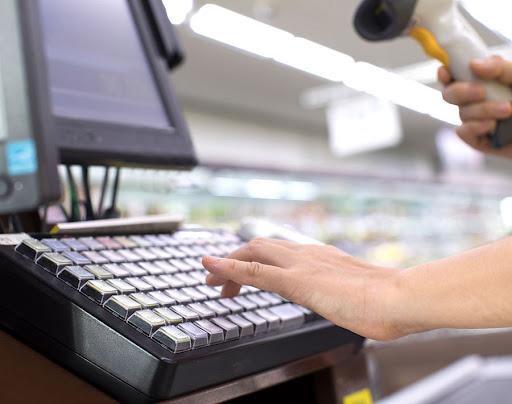

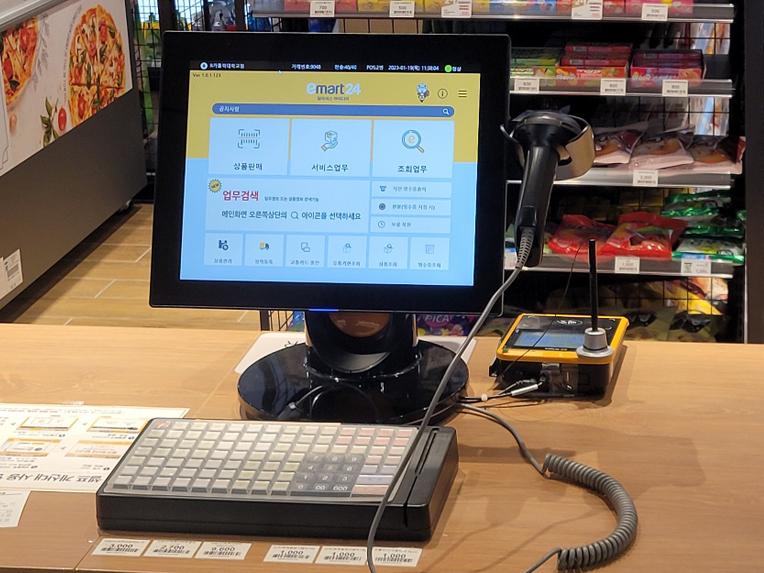

Installation example

Retail market
Retail market

Product specification

MSR
Track Position Track1/2/3 Life of Head 500,000 card swipes
Card swipe speed 5~120cm/s Enviromental Operating Temperature : 0~50 degree C
Controller
INTERFACE PS/2, USB KEYSWITCH Membrane Type
POWER SUPPLY DC 5Volt, Max 75mA Key code Download from our website (Provide uni mapper S/W)
Mechanical
SIZE 339.0(L)X206.0(W)X50.0(H)mm KEY LIFE CYCLE 10 million times
TOTAL TRAVEL 3.0±0.5mm KEY LAYOUT 112Key
PEAK FORCE 55±10g



* POS Keyboard 112 Keys
