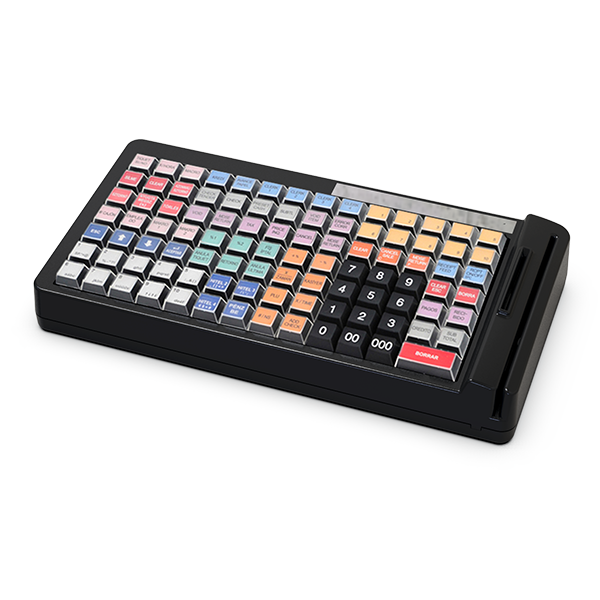

PP311AM 98KEY

- 98 keys POS keyboard
- SCR & MSR device that reads quickly and accurately
- Provide basic uni-mapper's software
- POS keyboard 98 keys

Inquiry

Product Features

PP311AM 98KEY

Retail PLU keyboard with
secure SCR and MSR

  1. 98keys
    POS Keyboard
  2. SCR&MSR Device
    that reads
    quickly and accurately
  3. Provide basic
    Uni-Mapper's software
  4. Manufacture by our own technology,
    "Made in Korea"

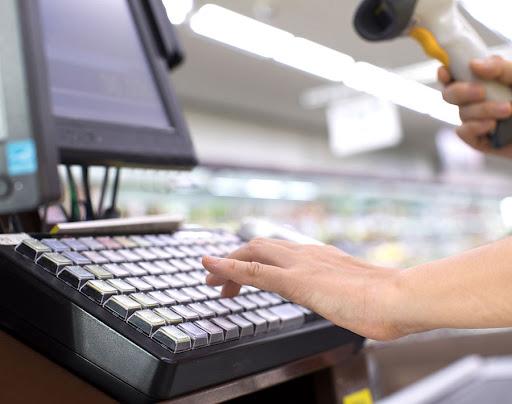

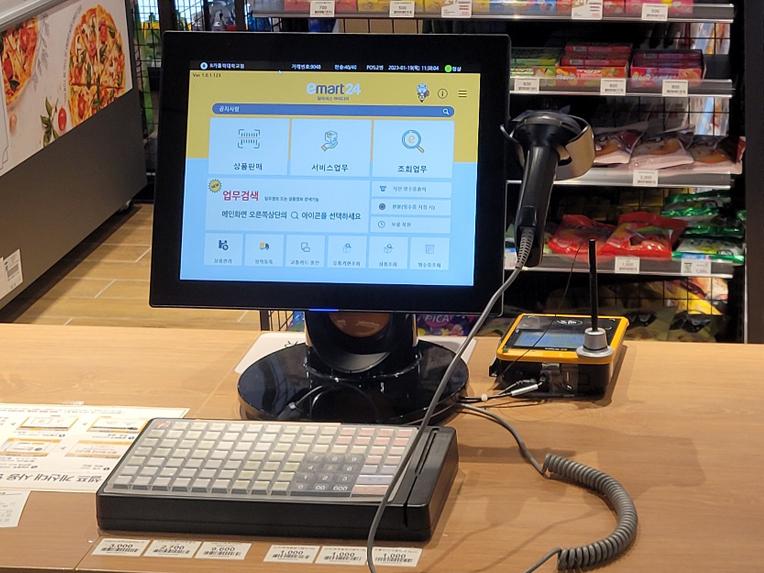

Installation example

Retail market
Retail market

Product specification

SCR&MSR
SCR USB INTERFACE FTDI USB Serial Converter MSR TRACK POSITION Track2
SCR CERTIFICATION EMV LEVEL 1,2 Certification / KTC Certification
Controller
INTERFACE USB KEYSWITCH Membrane Type
POWER SUPPLY DC 5Volt, Max 150mA Key code Download from our website (Provide uni mapper S/W)
Mechanical
SIZE 320.0(L)X165.0(W)X53.0(H)mm KEY LIFE CYCLE 10 million times
TOTAL TRAVEL 3.0±0.5mm KEY LAYOUT 98Key
PEAK FORCE 55±10g

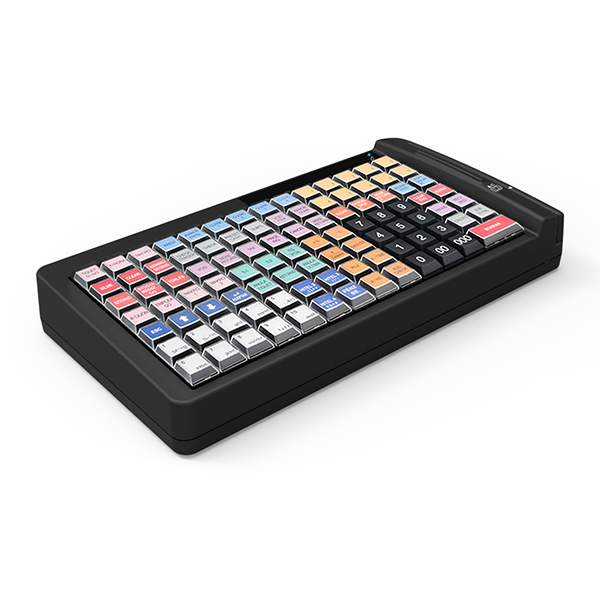

* POS Keyboard 98 Keys
