POS Peripherals

POS Peripherals

PP6000

- 15" touch monitor
- High performance, high efficiency and stability
- Prompt processing and convenient scalability
- POS monitor 15 inch

Inquiry

Product Features

PP6000

Smart design POS Monitor

  1. 15" touch monitor
  2. High performance,
    high efficiency
    and stablity
  3. Promt processing and
    convenient scalability
  4. Excellent multi-touch
    technology & Bright,
    clean screen
  5. "Free-Moving" by
    stand and
    Organizing cable wires
  6. Manufacture by our
    own technology,
    "Made in Korea"

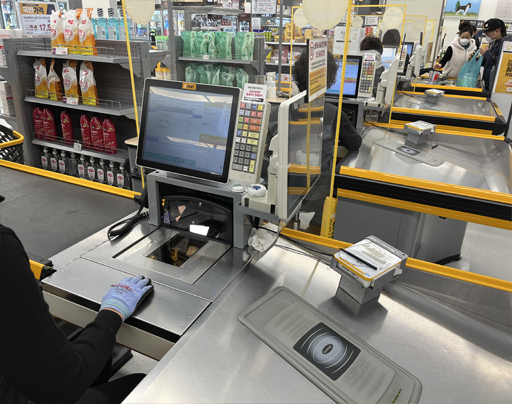

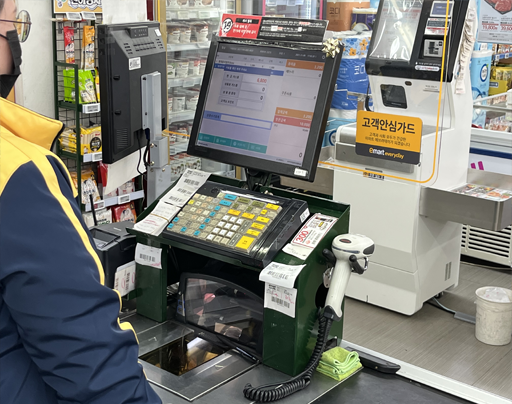

Installation example

Retail market
Retail market

Product specification



LCD Panel
Screen Diagonal 15" Active Matrix TFT LCD Support Color 16.2M/262K color
Pixel HxY 1024 X 768 White Luminance 250[cd/m2]
Aspect Ratio 4:3 Ratio Contrast Ratio 700:1[Typ.]
Touch Panel
Type Multy Capactive Touch Screen OS supported DOS, WIN, LINUX, IMAX
Interface USB
Video Input
VGA Signal

Analog RGB

D-Sub 15Pin Female Cable

 Display Port

Digital Signal V1.1

20pin standard Cable
Power
Type Combo Internal AC&External DC Adapter Output Voltage DC12V/5V(Inverter/mail), 2.5A
Input Voltage Universal AC 100~230V, 50/60 Hz Consumption 20W
Dimension
Dimension 351.7(W)X45.6(D)X275.2(H)mm



* POS Monitor 15 Inch
