PP6170

- 17" touch monitor
- High performance, high efficiency and stability
- Prompt processing and convenient scalability
- POS monitor 17 inch

Inquiry

Product Features

PP6170

Smart design POS Monitor

  1. 17" touch monitor
  2. High performance,
    high efficiency
    and stablity
  3. Promt processing and
    convenient scalability
  4. Excellent multi-touch
    technology & Bright,
    clean screen
  5. "Free-Moving" by
    stand and
    Organizing cable wires
  6. Manufacture by our
    own technology,
    "Made in Korea"

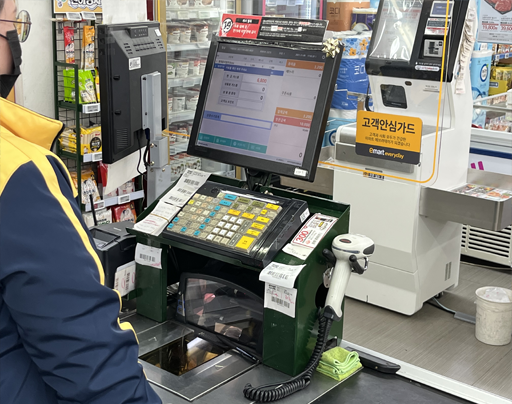

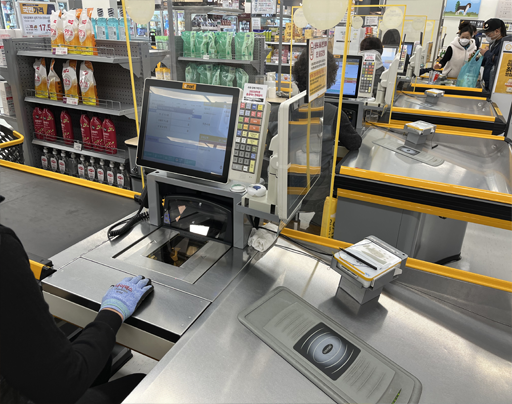

Installation example

Retail market
Retail market

Product specification

LCD Panel
Screen Diagonal 17" Active Matrix TFT LCD Support Color 16.7M colors
Pixel HxY 1280 X 1024 White Luminance 350[cd/m2]
Aspect Ratio 4:3 Ratio Contrast Ratio 1000:1[Typ.]
Touch Panel
Type 4/5-wire resistive touch screen OS supported DOS, WIN, LINUX, IMAX
Interface USB/RS232
Video Input
Input Signal Analog RGB / USB Viedo Cable D-Sub 15 pin Cable, DVI-D Cable
Power
Type Combo Internal AC&External DC Adapter Output Voltage DC12V/5V(Inverter/mail), 2.5A
Input Voltage Universal AC 100~230V, 50/60 Hz Consumption 20W
Dimension
Dimension 351.7(W)X45.6(D)X275.2(H)mm



* POS Monitor 17 Inch
