POS

Product Features

PP304 84KEY

Electronic Payment System
with secure function

  1. 84keys
    POS Keyboard
  2. MSR Device that reads
    quickly and accurately
  3. Provide basic
    Uni-Mapper's software
  4. Manufacture by our own technology,
    "Made in Korea"

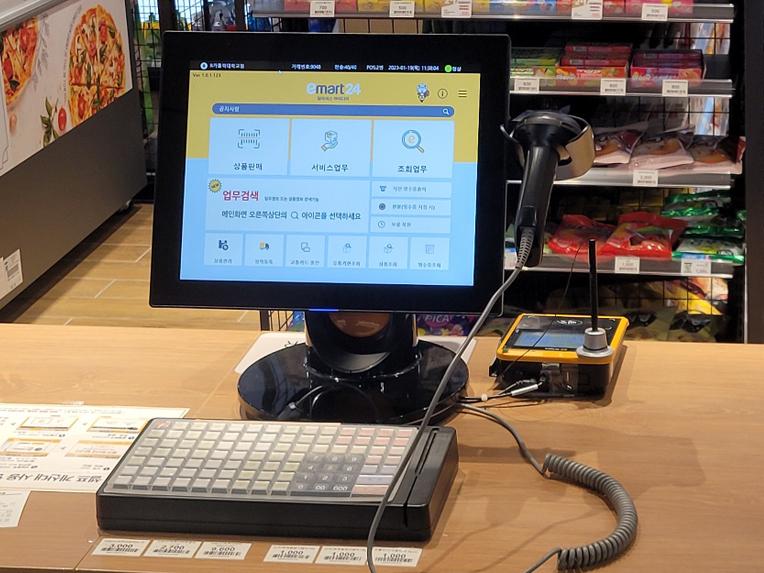

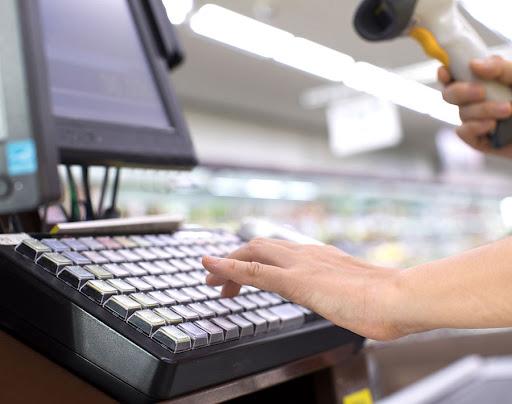

Installation example

Retail market
Retail market

Product specification

MSR
Track Position Track1/2/3 Life of Head 500,000 card swipes
Card swipe speed 5~120cm/s Enviromental Operating Temperature : 0~50 degree C
Controller
INTERFACE PS/2, USB KEYSWITCH Membrane Type
POWER SUPPLY DC 5Volt, Max 75mA Key code Download from our website (Provide uni mapper S/W)
Mechanical
SIZE 267.0(L)X198.0(W)X55.0(H)mm KEY LIFE CYCLE 10 million times
TOTAL TRAVEL 3.0±0.5mm KEY LAYOUT 84Key
PEAK FORCE 55±10g



* POS Keyboard 84 Programmable Keys
